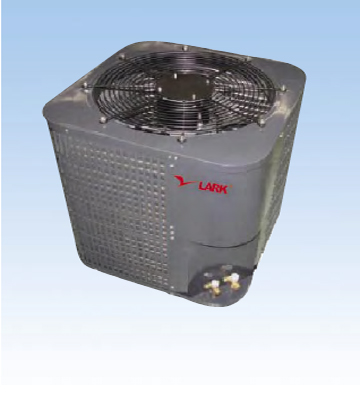

Super Condensing Unit

Economical series

Performance

10.00 SEER & 13.00 SEER efficiency range Cooling capacity from 1.5 to 5 tons T3 tropical high efficiency condensing units

Features

The universal outdoor unit can work with different types indoor units in the same capacity for ducted, cassette, ceiling&floor, air handler. Super quiet top air discharge Sheet metal guard is standard. Optional nylon and grill guard is available Coils are constructed of copper tubing with protected aluminum fins for durability and long lasting efficient operation UL State-of-art compressor. Scroll compressors in 3, 4, 5 ton models Refrigerant connections with a single control panel coverage servicing trouble-free. Operating sounds are minimized through upward

discharge air flow and innovative design Service-free permanently lubercated motor-bearings Service valves are standard on liquid and vapor sweat connections for ease of evacuating and recharging.

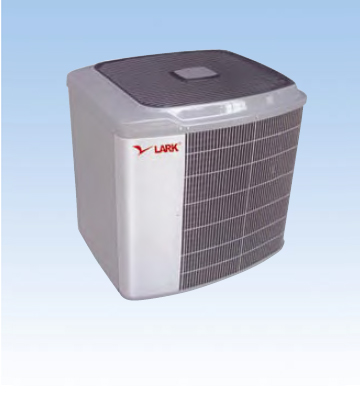

Elegant series

Performance

10.00 SEER & 13.00 SEER Efficiency Range Cooling capacity from 1.5 to 5 tons

Features

Elegant appearanced design,it’s more beautiful and much easier to harmonize with environment. The universal outdoor units can work with different type indoor units in the same capacity for ducted, cassette,ceiling&floor, air handler. One side metal guard removable ensures quick and easy access, to ensure saving service time and money. Large-diameter turbo fan and vortex duck and incorporated for efficient and quiet airflow.Efficient compressor leads to smooth, efficient and reliable operation.

Grilled top and side guard ensures high efficient airflow and superior system performance. Efficient coil constructed of grooved copper tube corrugated and lanced fins.
